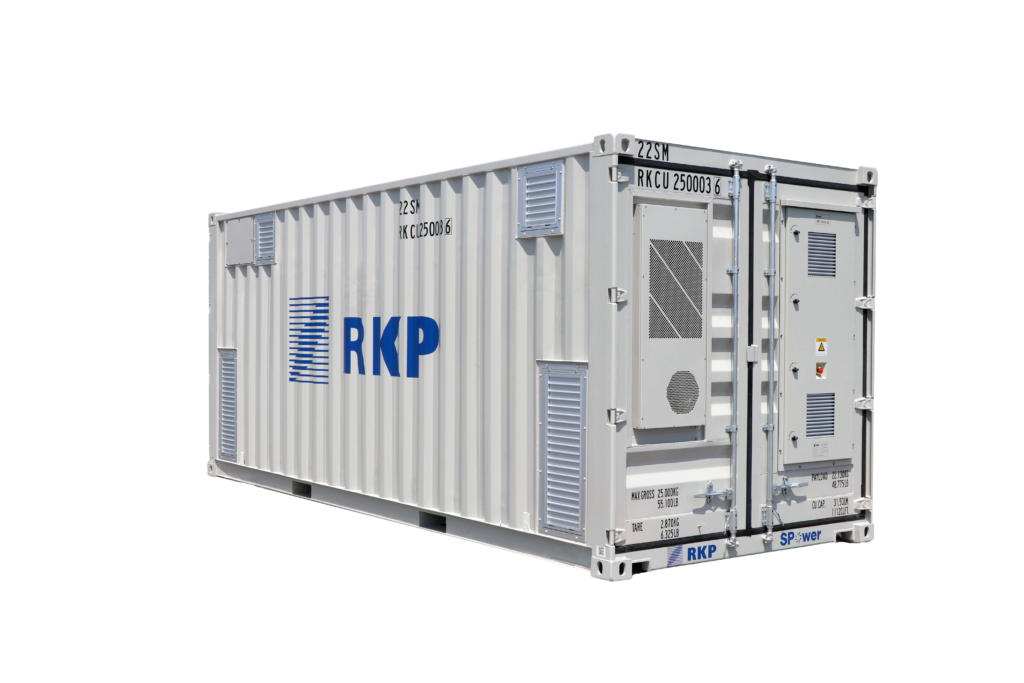

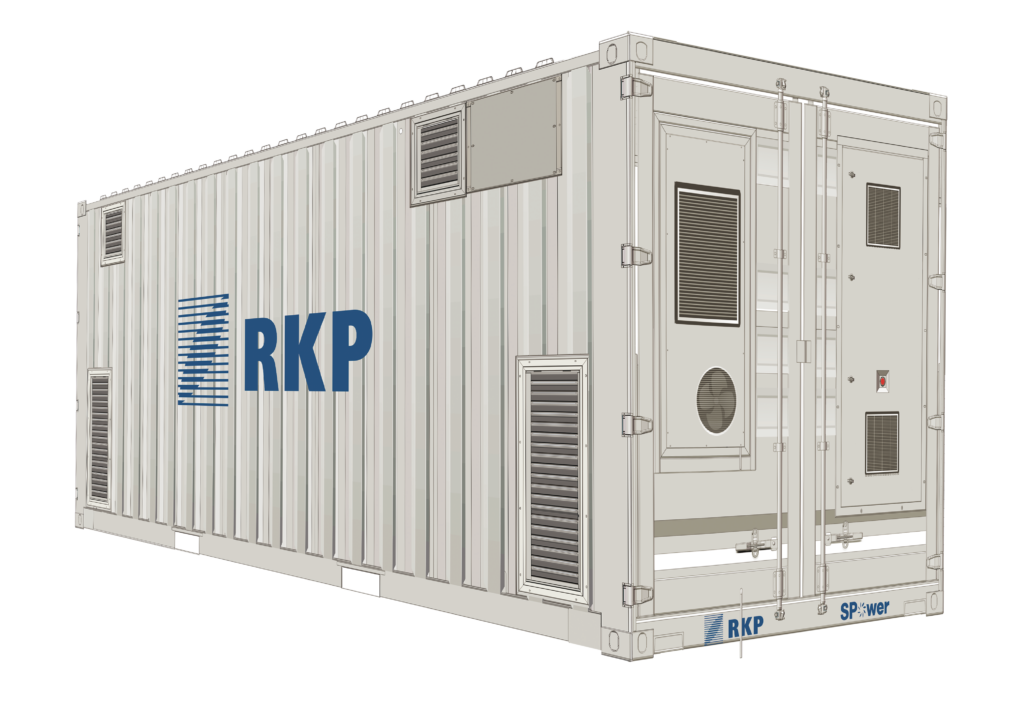

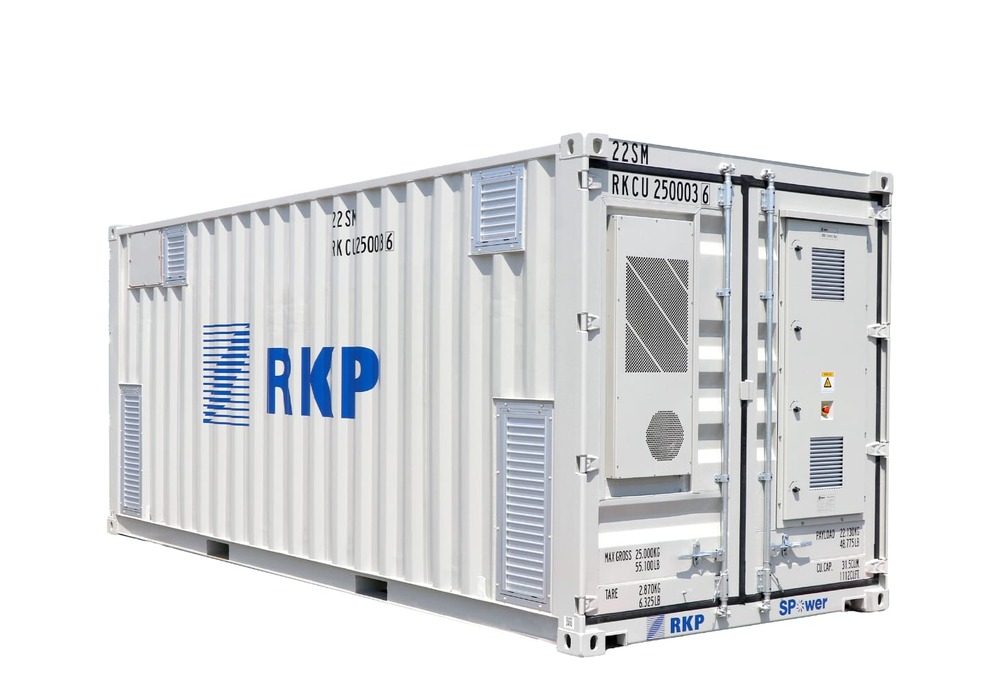

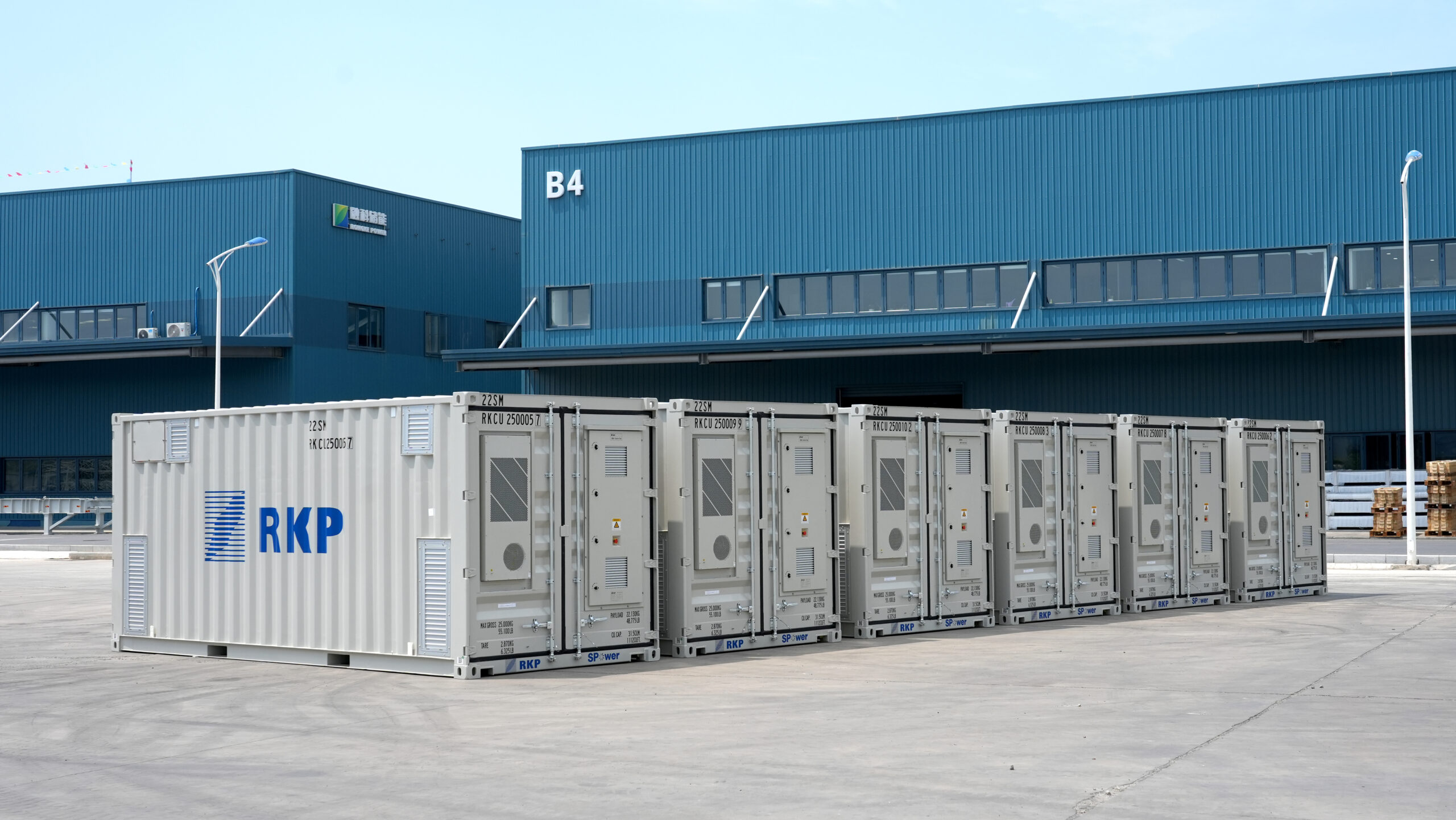

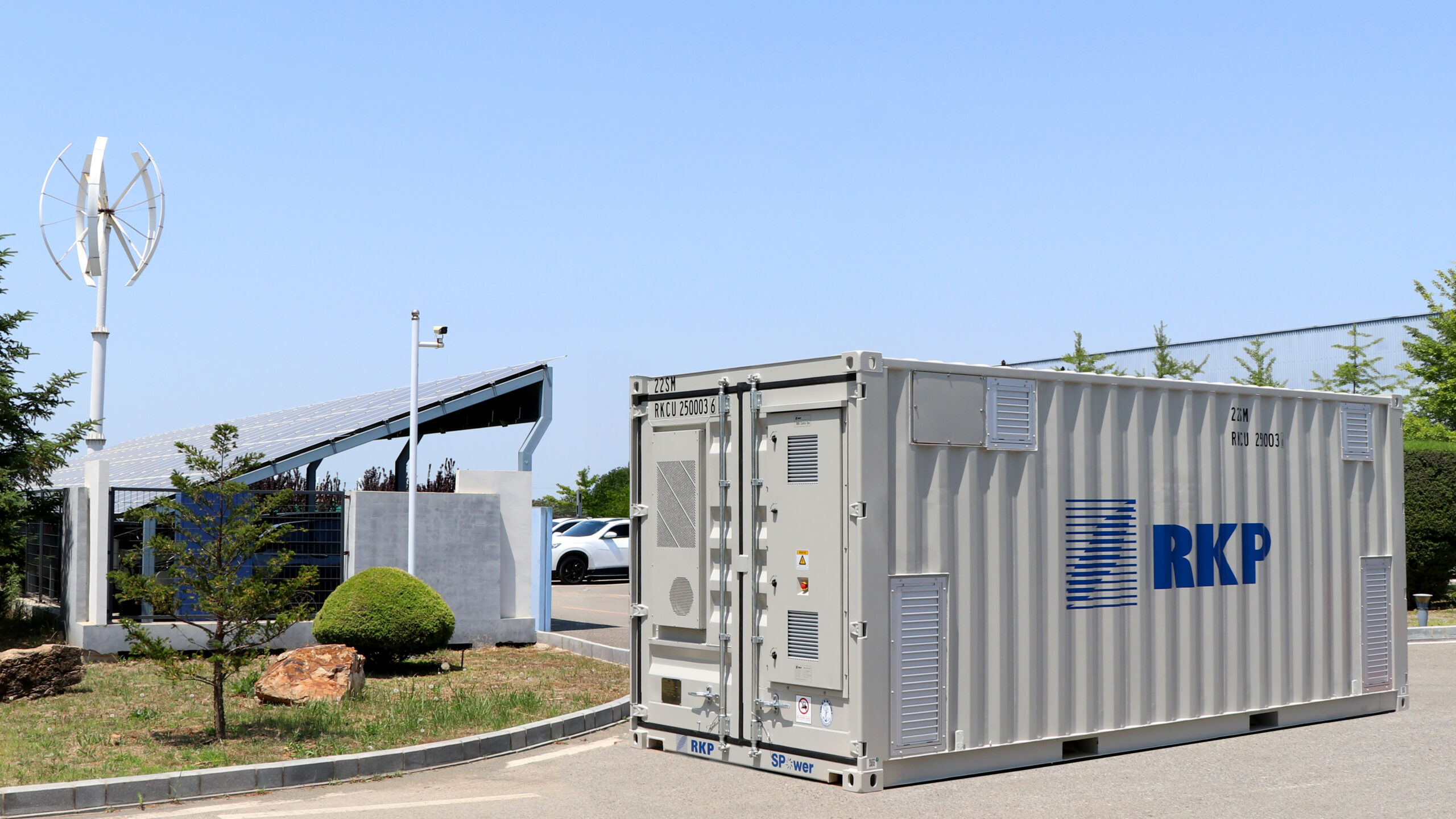

SPower Series

Safe, Long-lasting

  • 60kW/240kWh per Unit
  • Highly Modularized
  • Factory-Integrated
  • Plug-and-Play Configuration
  • Transportable Design

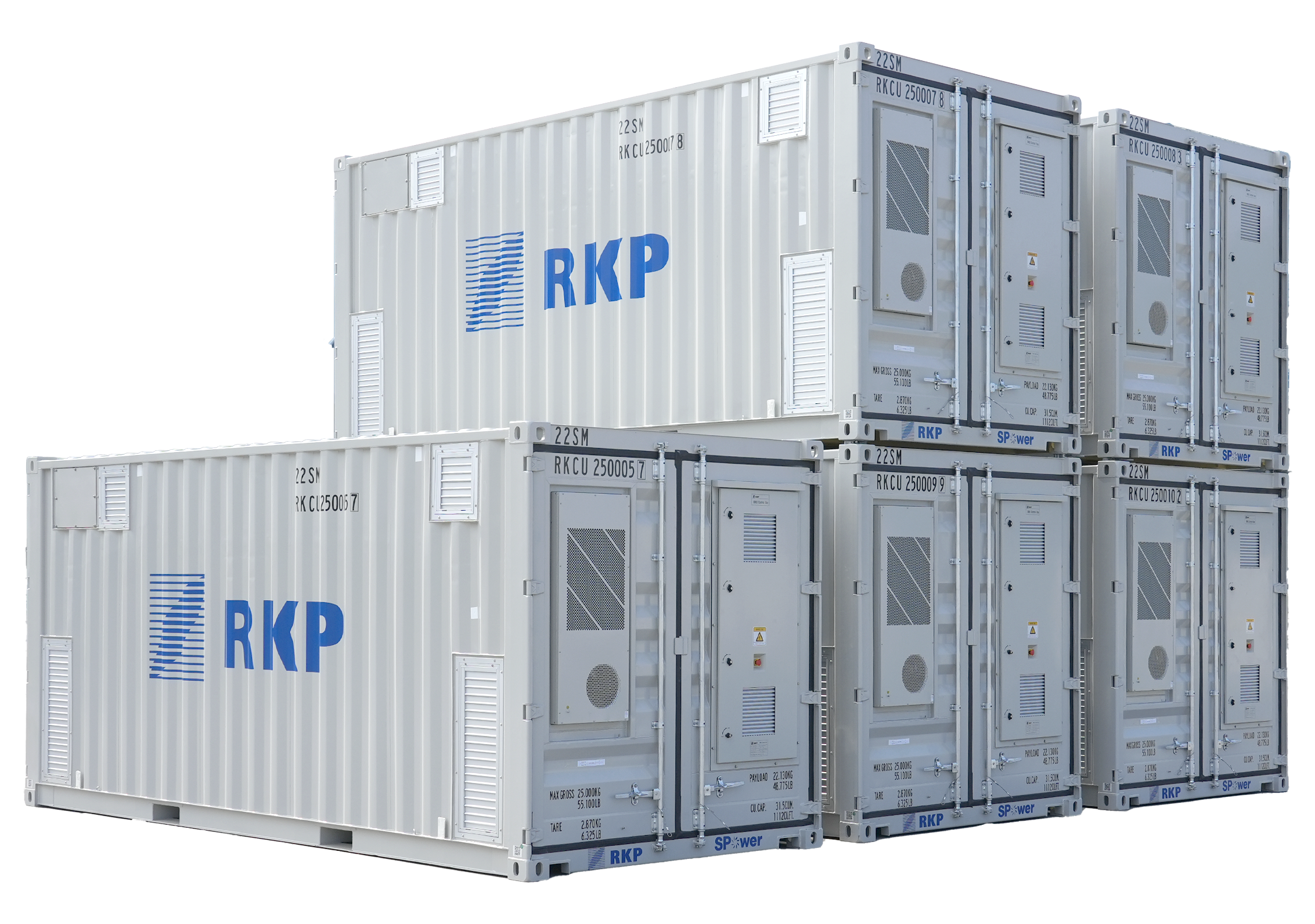

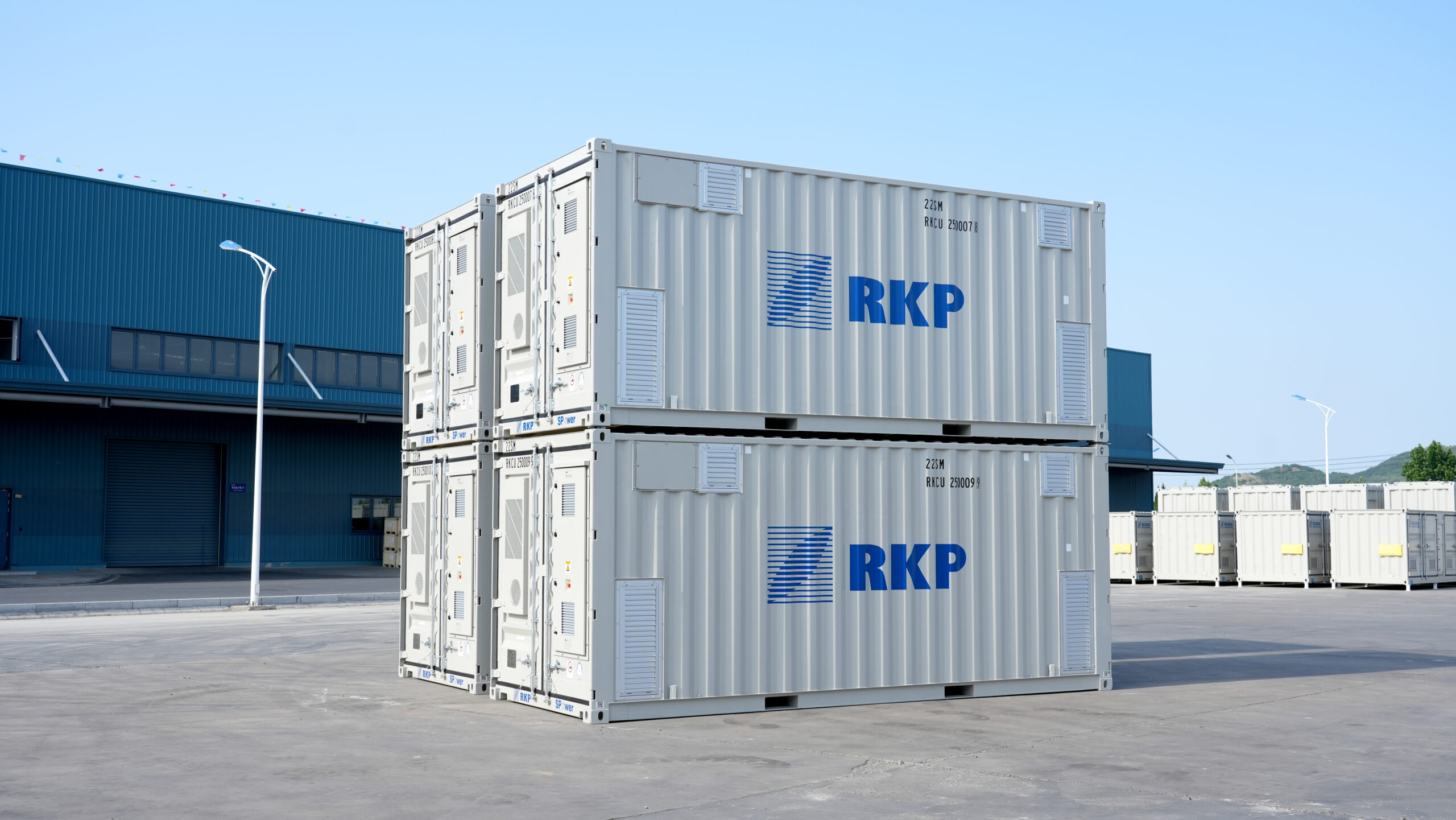

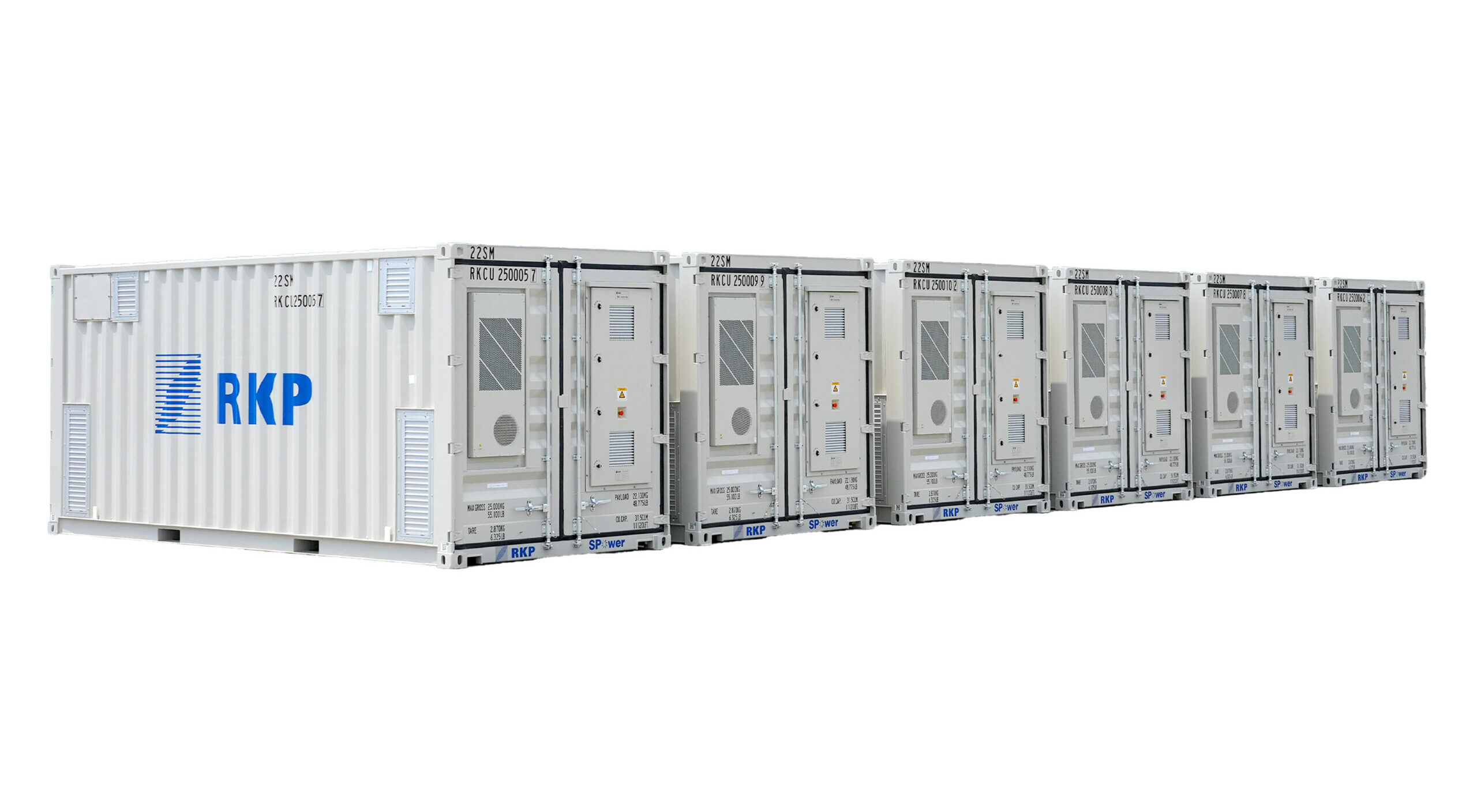

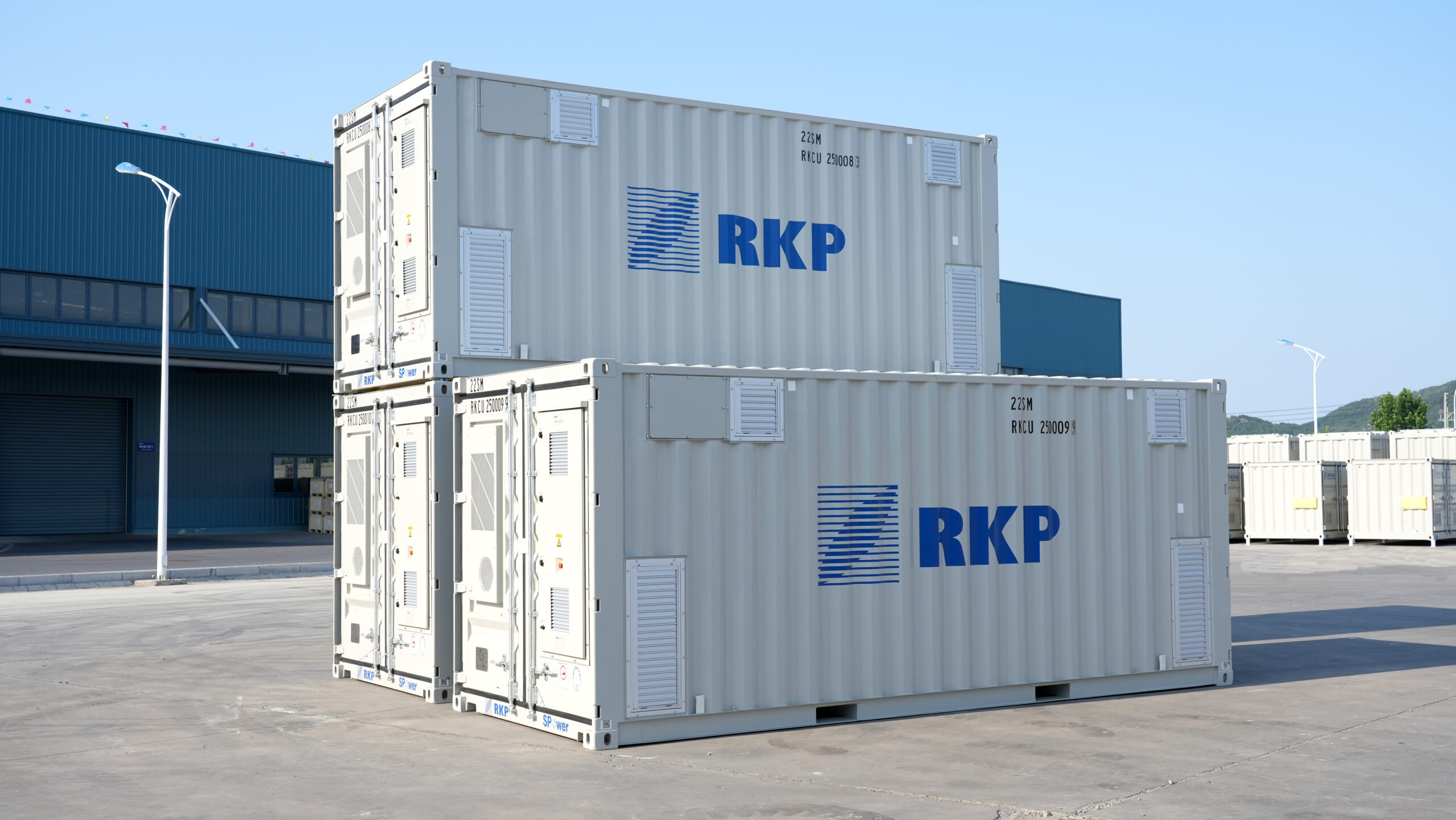

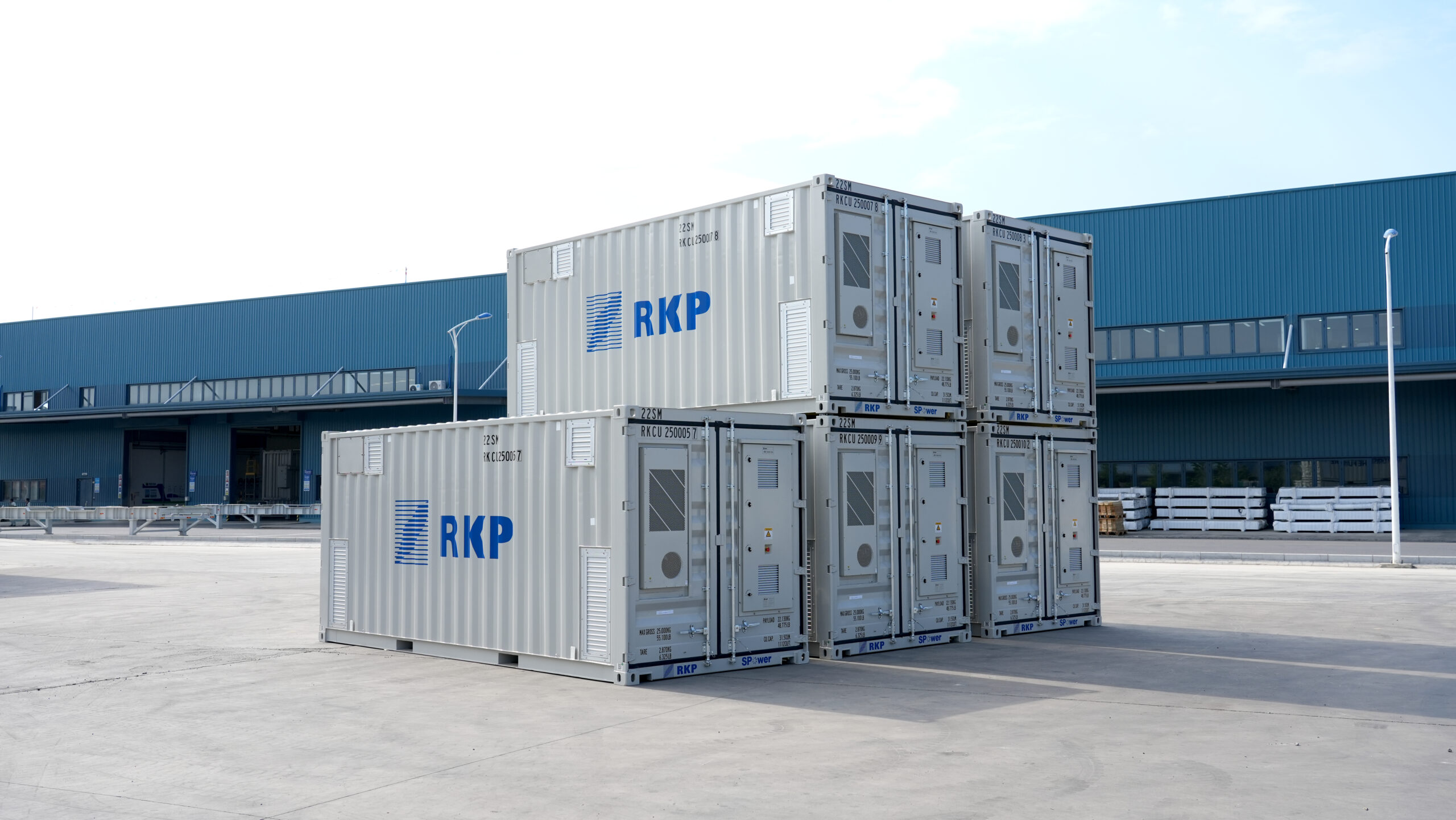

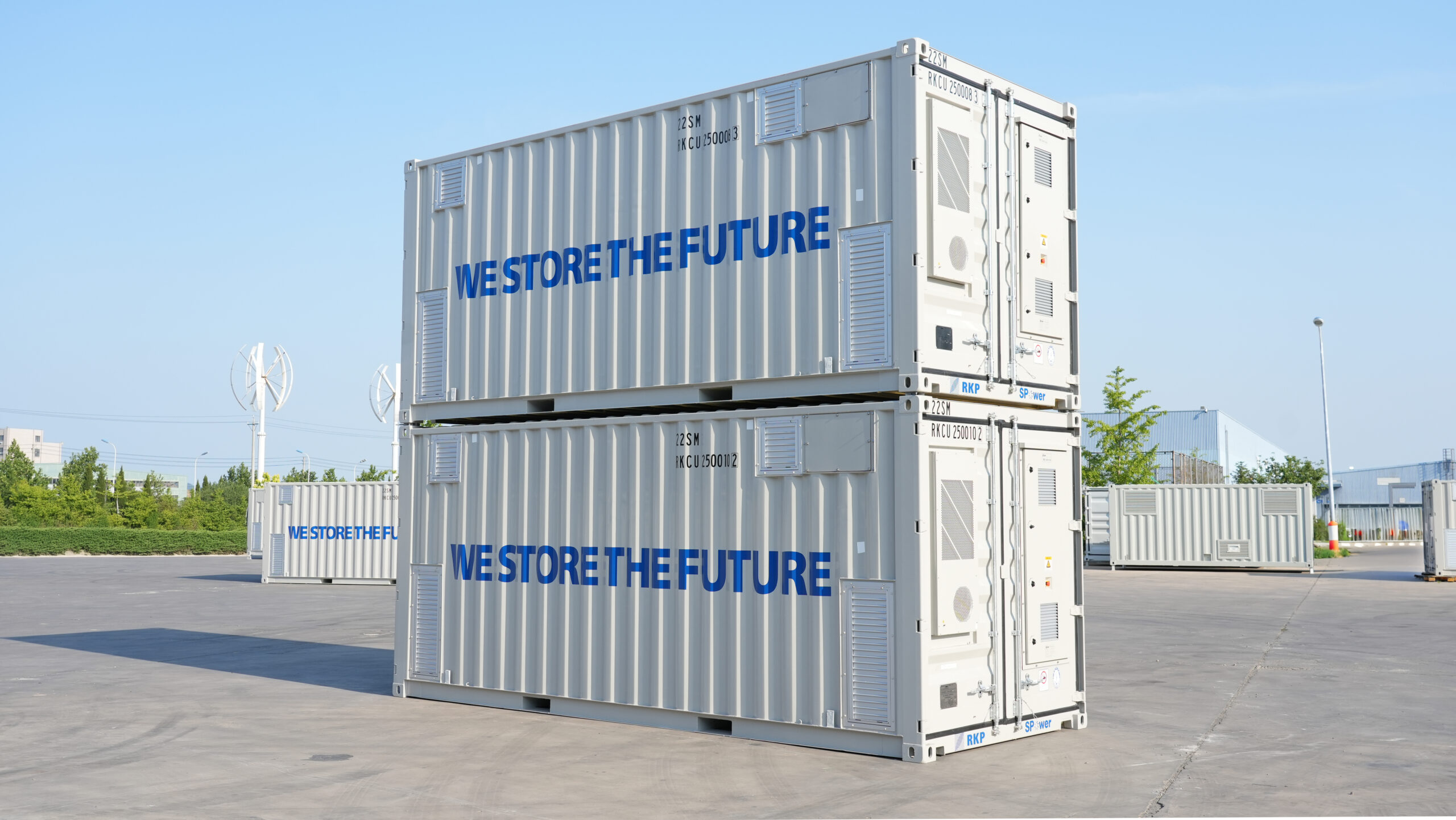

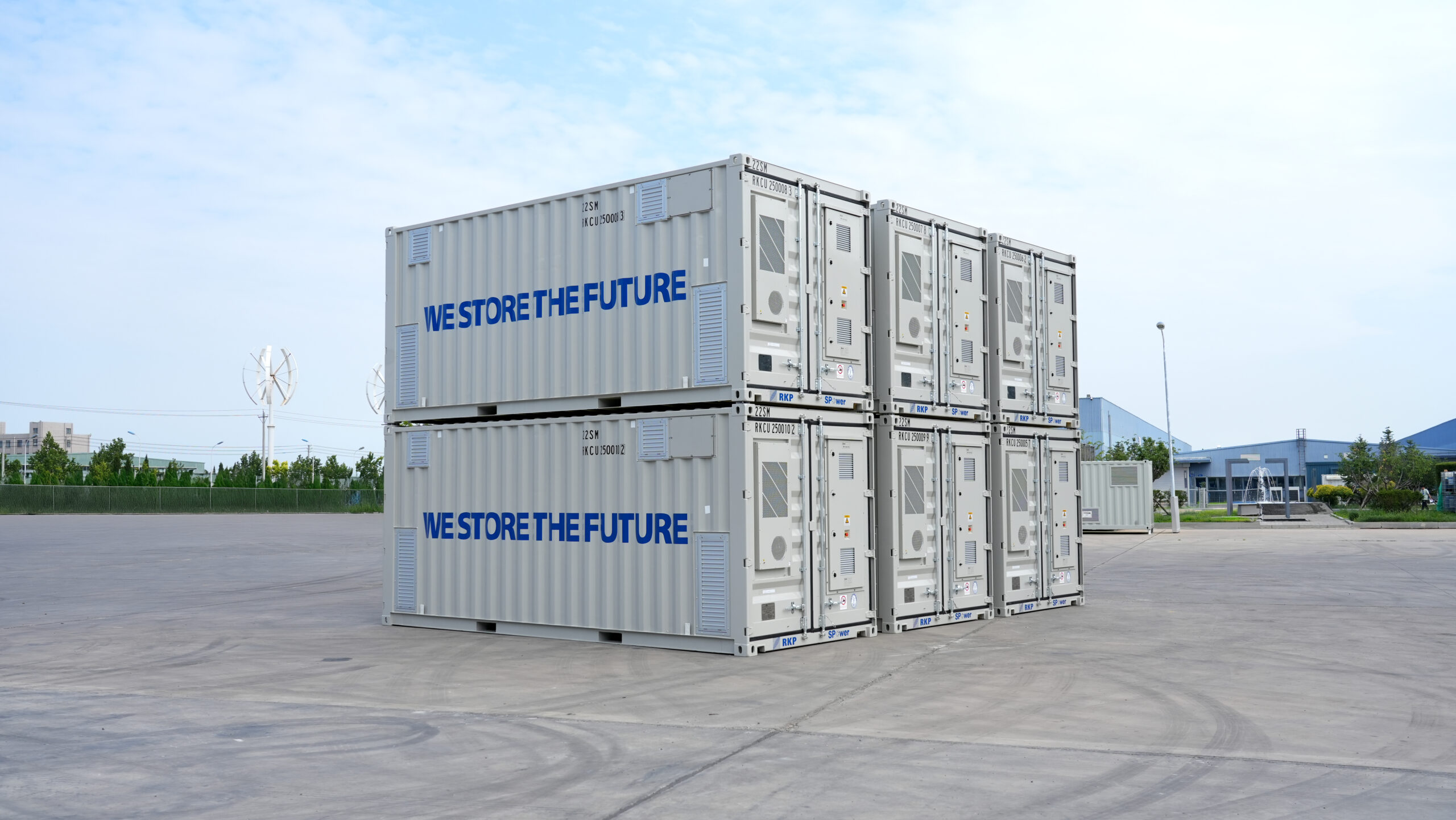

  • Scalable to Gegawatt hours by Stacking Units
  • IEC certified

Inherently Safe

Water-based electrolyte, no thermal runway

MORE DETAILS »

Long Cycle Life

Over 20,000 charge/discharge cycles with minimal degradation

MORE DETAILS »

Allowing 100% DOD

Without structural damage

MORE DETAILS »

Flexibility

Independant power and energy scalling with KW to MW applications

MORE DETAILS »

Data and Performance

NoDescriptionSPower 240o Technical Data
I General Requirement
1Life time of BESS 25+ years with no degradation
2Batteries function and performance 25+ years with no degradation
3Vanadium Redox Flow Battery Yes
4Cycles limited at 100% DOD per year No limit
5Cycling duty basis of the energy discharge guarantee +20,000
6Self-discharge for extended time <2%
7No degradation of battery EoL Yes
8Heat management Yes
9Long duration with 100% SOC access Yes
10Built-in seamless bypass Yes
11Battery modules installation Outdoor
12No augmentation Yes
13Hybrid Thermal Management (Passive + AC Cooling) Air/AC
14Transportable with pre-charge Yes
15Battery modules recyclable Yes
16Net recycling value of the battery module Positive
IIBattery Parameters
1Technology Vanadium redox flow
2Voltage of each module 104V~ 166.4V
3Max current of each module 577A
4Unit power of charge and discharge 60kW
5Unit energy discharge capacity 240kWh
6Max number of modules in series 18
7Max dimension of each battery 6.058m(L)×2.438m(W)×2.591m(H)
8Weight 21T
9Ambient operating temperature -20℃~50℃ (other temperatures optional)
10Storage temperature 0℃~45℃(long term storage)
11Protection of battery module (Indoor/outdoor) IP54 (optional up to IP65)
12Short circuit current 2500A
13Communications Modbus/TCP/CANbus/Ethernet
14Auxiliary supply 380V/AC ,50Hz,Three phase Stop:0.2kW Operation:3.2kW-8.6kW
15Energy efficiency80%DC(without considering self-consumption)
IIICertificates
1IEC 62932-2-1 Yes
2IEC 62932-2-2 Yes

Key Features

Safety

RKP's VFBs are non-flammable, have a low risk of thermal runaway, making them one of the safest energy storage options.This ensures safe operation in all environments, including urban areas,industrial sites, and residential neighborhoods.

MORE DETAILS »

Long Lifespan

RKP's VFB systems are designed for durability, offering a lifespan of over 25 years with minimal capacity degradation.

This longevity ensures a lower total cost of ownership and consistent performance over time.

MORE DETAILS »

Zero Degradation

RKP's VFB systems feature zero capacity degradation over time, maintaining consistent performance throughout their lifespan.
This ensures long-term reliability and reduces the need for frequent replacements, resulting in significant cost savings.
MORE DETAILS »

Scalability

RKP's VFB systems are highly flexible and can be easily scaled to meet the energy demands of any project.
From small residential setups to large-scale utility projects, our solutions grow with your needs.
MORE DETAILS »

Environmental Impact

Committed to sustainability, RKP's VFB systems use vanadium, a recyclable and abundant element.
The non-toxic and environmentally friendly nature of our batteries supports your green initiatives and reduces your carbon footprint.
MORE DETAILS »
